July 1, 2024

What are the ADA Placement Guidelines for Toilet Grab Bars?

There are two main placement guidelines for toilet grab bars, set by the Americans with Disabilities Act (ADA) standards to ensure accessibility and safety. These guidelines recommend the use of the following two grab bars:

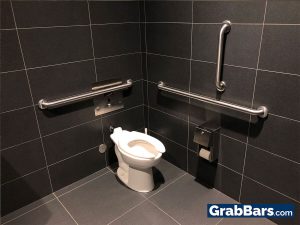

Side Wall Horizontal Grab Bar:

• Location: This grab bar should be mounted on the wall closest to the toilet on the side where a person would transfer from a wheelchair or need support while sitting or standing.
• Height: The horizontal grab bar needs to be installed between 33 inches and 36 inches (840-915 mm) above the finished floor to the top of the gripping surface.
• Length: The recommended minimum length for the side wall grab bar is 42 inches (1065 mm).
• Distance from Back Wall: The grab bar should be spaced a maximum of 12 inches (305 mm) from the back wall.
• Extension Beyond Back Wall: The bar needs to extend a minimum of 54 inches (1370 mm) from the centerline of the water closet towards the open side.

Rear Wall Horizontal Grab Bar:

• Location: This grab bar should be mounted on the wall behind the toilet.
• Height: Similar to the side wall grab bar, it should be installed between 33 inches and 36 inches (840-915 mm) above the finished floor to the top of the gripping surface.
• Length: The recommended minimum length for the rear wall grab bar is 36 inches (915 mm).
• Extension from Centerline: The grab bar must extend at least 12 inches (305 mm) from the centerline of the water closet towards the side wall on one side.
• Extension Towards Open Side: On the opposite side (towards the open space), it needs to extend a minimum of 24 inches (610 mm) from the centerline of the water closet.

Are there any exceptions to these placement guidelines?

• In some cases, where space limitations prevent a 36-inch rear wall grab bar, a minimum 24-inch grab bar centered on the water closet may be allowed.
• For the side wall grab bar, if a 42-inch bar is not possible due to a side wall obstruction, a minimum 24-inch grab bar positioned 12 inches from the back wall is permitted.

Are there any additional considerations for ADA toilet grab bar placements?

• Remember, these are minimum recommendations. You can install longer grab bars if needed for better support or user preference.
• Consult a healthcare professional or occupational therapist for personalized grab bar placement recommendations based on your specific needs.
• Ensure the grab bars are mounted on secure wall studs to provide adequate support.

Here is our complete placement guide with technical drawings: ADA Toilet Grab Bar Placement Guide

Why are these two ADA-compliant toilet grab bar placements important?

The specific ADA toilet grab bar placement guidelines are necessary for several reasons:

• Accessibility and Safety for People with Disabilities: These guidelines ensure that people with mobility limitations, including those who use wheelchairs for transfers, can safely and independently use the toilet.
  • The placement of the grab bars allows for a smooth transfer from a wheelchair to the toilet seat and vice versa.
  • The height and length of the grab bars are designed to provide adequate support for people of various heights and upper body strength.
• Standardization for Consistency: Having consistent placement guidelines across different buildings ensures people with disabilities can navigate restrooms in various public and private settings with a predictable layout for grab bars.
  • This familiarity reduces confusion and anxiety when using unfamiliar restrooms.
• Prevention of Falls: Falls in the bathroom are a common cause of injuries, especially for seniors. Grab bars placed in the designated locations provide crucial support points to help users maintain balance while getting on and off the toilet, reducing the risk of falls and potential injuries.
• Universal Design Benefits Everyone: While primarily intended for people with disabilities, ADA grab bar placement guidelines benefit everyone. They offer additional support and stability for people of all ages and abilities, including pregnant women, those recovering from injuries, or individuals with temporary balance issues.
• Minimize Installation Errors: Specific guidelines help prevent improper installation that could compromise the safety and effectiveness of grab bars. Having clear standards ensures that the bars are placed at the optimal height, length, and location to provide maximum support.

Overall, the ADA toilet grab bar placement guidelines are crucial for promoting accessibility, preventing falls, and creating a safe and user-friendly restroom environment for everyone.

Take a look at our wide variety of ADA-compliant toilet grab bars here: Toilet Grab Bars

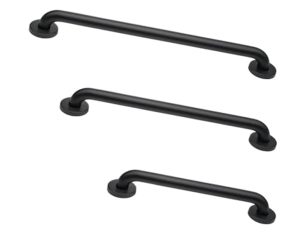

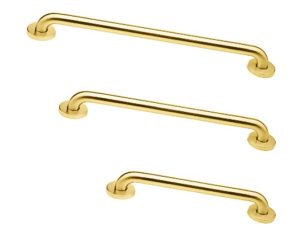

For convenience, we have pre-assembled ADA-Compliant Toilet Grab Bar Packs which include all the necessary ADA-compliant toilet grab bars you will need.

If you have any additional questions about ADA toilet grab bars or their placement in bathrooms, give us a call at 704-800-4629, live chat with us on GrabBars.com or email us at [email protected] and we’ll be happy to help you out.
