September 27, 2023
Standard grab bars typically range from 12 to 42 inches in length, with common sizes being 18, 24, 32, and 36 inches. The appropriate length depends on the installation location and user needs. Longer bars offer more gripping area and support, while shorter bars fit better in tight spaces. Choosing the right length ensures optimal safety and accessibility for users.
To choose the right grab bar length, consider the available space and where support is needed. Longer grab bars (such as 32 to 42 inches) provide more gripping area and are ideal for areas where users need to move along or steady themselves over a distance. Shorter grab bars (12 to 24 inches) work well in tight spaces or next to toilets and showers where limited movement occurs. Always prioritize user comfort and safety, ensuring the grab bar fits securely without obstructing movement.
Yes, grab bar length affects safety. Choosing the right length ensures users have enough surface to grip securely and maintain balance during movement or transfers. A grab bar that’s too short may not provide adequate support, while one that’s too long could obstruct space or be difficult to use effectively. Properly sized grab bars help reduce the risk of slips and falls.
The ADA (Americans with Disabilities Act) specifies grab bar lengths primarily for horizontal grab bars, requiring at least 36 inches in length beside toilets and 42 inches in showers. However, it does not set specific length requirements for vertical grab bars. Grab bars must be installed to provide effective support and meet spacing and mounting height guidelines to ensure accessibility and safety in public and commercial facilities.
There are no strict regulations for grab bar lengths in residential settings like those for public facilities. However, general guidelines recommend selecting lengths that fit the user’s needs and available space, typically between 12 and 42 inches. The goal is to provide comfortable, secure support tailored to the individual’s mobility and safety requirements. While residential homes aren’t required to follow ADA regulations on grab bar length, size, and placement, it’s still highly recommended to consider these guidelines to ensure maximum safety and support for all users.
For detailed information, see our comprehensive guide: ADA Shower Grab Bar Placement Guide (Commercial)
Control Wall Horizontal Grab Bar:
For walls measuring 36 inches: a 24-inch straight grab bar is required.
For walls measuring 60 inches: a 36-inch straight grab bar is required.
Back Wall Horizontal Grab Bar:
For walls measuring 36 inches with an adjacent shower seat: an 18-inch straight grab bar is required.
For walls measuring 30 inches: a 24-inch straight grab bar is required.
For walls measuring 60 inches: a 48-inch straight grab bar is required.
For more details, see our comprehensive guide: ADA Bathtub Grab Bar Placement Guide (Commercial)

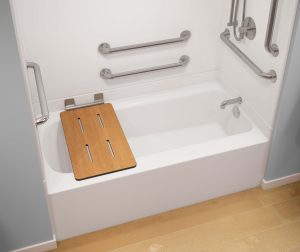

Foot Wall Horizontal Grab Bar:
Minimum length: 24 inches
Common lengths: 24 inches or 30 inches
Back Wall Horizontal Grab Bars:
Minimum length: 24 inches
Common lengths: 24 inches, 30 inches, or 36 inches
Head Wall Horizontal Grab Bar:
Minimum length: 12 inches
Common lengths: 12 inches, 18 inches, or 24 inches
For detailed information, see our comprehensive guide: ADA Toilet Grab Bar Placement Guide (Commercial)

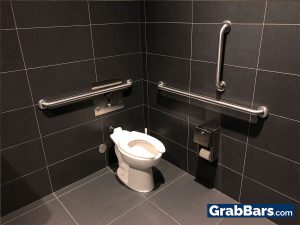

Rear Wall Horizontal Grab Bar:
Required length: 36 inches (915 mm)
Exception: If wall space does not allow a 36-inch bar, a reinforced grab bar at least 24 inches (610 mm) long, centered on the toilet, must be installed.
Side Wall Horizontal Grab Bar:
Required length: 42 inches (1067 mm)
Exception: If a 42-inch grab bar cannot be installed on the side wall, a minimum 24-inch (610 mm) grab bar is permitted, positioned no more than 12 inches (305 mm) from the rear wall.
If you have any additional questions about standard grab bar lengths or need help deciding which lengths would be the best fit for your bathroom, give us a call at 704-800-4629, live chat with us on GrabBars.com or email us at [email protected] and we’ll be happy to help you out.
